Inspection Point Labels

Inspection Point Labels are specially designed to identify Thickness Measurement Locations (TML's) on non-insulated piping and vessels. Our UTL2, UTL3 and UTL4 inspection labels have protected write-on areas for recording TML numbers, line numbers, etc. All labels are UV stable and resistant to most solvents, oils and household chemicals.





UTL 1 and 5 Label Description

Labels are 2.2 Mat silver polyester with a red ink color and coated with a clear lamination for protection. This high performance adhesive provides a strong bond on metal, plastic and painted surfaces, and is chloride and fluoride free.

UTL 1 Labels - Inspection Labels - Inspection Plug Strategies

1.75” Ellipse with .75”
diameter hole in center.

UTL 5 Label - Inspection Labels - Inspection Plug Strategies

1.25” circular with .75”
diameter hole in center.

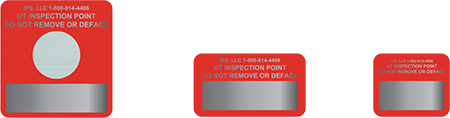

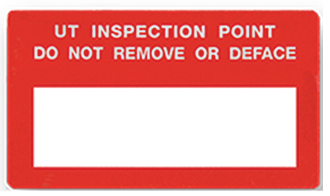

UTL 2, 3 and 4 Label Description

Labels are of soft tempered matte clear sealed anodized aluminum foil. The anodizing process produces a coating that is sapphire hard, transparent, static resistant, and integral with the aluminum surface. The 3M #200 adhesive provides a strong bond on metal, plastic and painted surfaces and is chloride and fluoride free. They have self-laminating clear plastic flaps to permanently seal written information. Service temperature: -50° to 350°F.

UTL 2,3 and 4 Label Description - Inspection Labels - Inspection Plug Strategies

Download the Inspection Point Labels Brochure

Manufactured in the USA!
